| Model:: | G5x10 | Package:: | Bulk Package special Package |
|---|---|---|---|
| Material:: | Low Carbon Steel | Surface:: | Passivated in zinc white-blue, zinc/yellow,zinc/black Or Oiled |
| Alternative:: | Stainless steel 304,316 Or Aluminum |

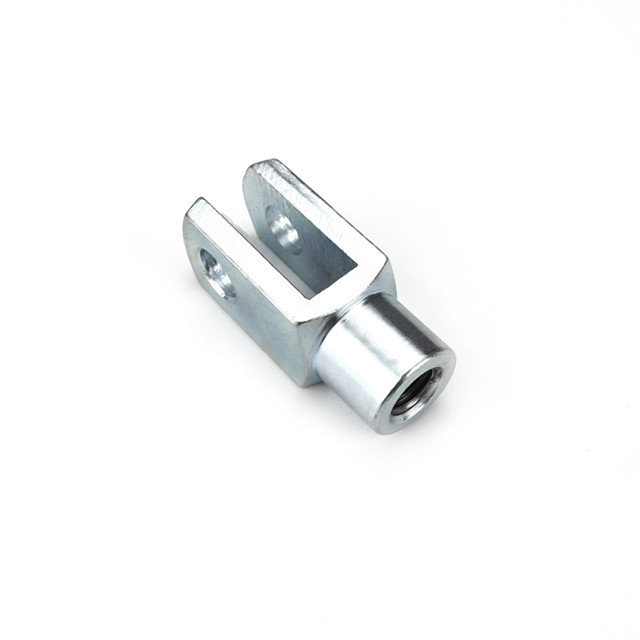

Clevises/yokes DIN71752/ISO8140, G steel version | ||||||||||||||
Item | d1 H9 | d2 | g ±0.5 | a1 h11 | a2 -0.2/ +0.5 | b1 B13 | b2 +0.7 +0.15 | d3 ±0.3 | f ±0.2 | l1 ±0.5 | l2 ±0.4 | l3 ±0.2 | r | Weight (g/pc) |
G4x8 | 4 | M4 | 8 | 8 | 8 | 4 | 4 | 8 | 0.5 | 21 | 16 | 6 | 0.5 | 5 |
G4x16 | 4 | M4 | 16 | 8 | 8 | 4 | 4 | 8 | 0.5 | 29 | 24 | 6 | 0.5 | 7 |
G5x10 | 5 | M5 | 10 | 10 | 10 | 5 | 5 | 9 | 0.5 | 26 | 20 | 7.5 | 0.5 | 9 |
G5x20 | 5 | M5 | 20 | 10 | 10 | 5 | 5 | 9 | 0.5 | 36 | 30 | 7.5 | 0.5 | 13 |
G6x12 | 6 | M6 | 12 | 12 | 12 | 6 | 6 | 10 | 0.5 | 31 | 24 | 9 | 0.5 | 15 |
G6x24 | 6 | M6 | 24 | 12 | 12 | 6 | 6 | 10 | 0.5 | 43 | 36 | 9 | 0.5 | 21 |
G8x16 | 8 | M8 | 16 | 16 | 16 | 8 | 8 | 14 | 0.5 | 42 | 32 | 12 | 0.5 | 37 |
G8x32 | 8 | M8 | 32 | 16 | 16 | 8 | 8 | 14 | 0.5 | 58 | 48 | 12 | 0.5 | 54 |
G10x20 | 10 | M10 | 20 | 20 | 20 | 10 | 10 | 18 | 0.5 | 52 | 40 | 15 | 0.5 | 74 |
G10x40 | 10 | M10 | 40 | 20 | 20 | 10 | 10 | 18 | 0.5 | 72 | 60 | 15 | 0.5 | 116 |
G12x24 | 12 | M12 | 24 | 24 | 24 | 12 | 12 | 20 | 0.5 | 62 | 48 | 18 | 0.5 | 121 |
G12x48 | 12 | M12 | 48 | 24 | 24 | 12 | 12 | 20 | 0.5 | 86 | 72 | 18 | 0.5 | 175 |
G14x28 | 14 | M14 | 28 | 27 | 27 | 14 | 14 | 24 | 1 | 72 | 56 | 22.5 | 1 | 178 |
G14x56 | 14 | M14 | 56 | 27 | 27 | 14 | 14 | 24 | 1 | 101 | 85 | 22.5 | 1 | 258 |
G16x32 | 16 | M16 | 32 | 32 | 32 | 16 | 16 | 26 | 1 | 83 | 64 | 24 | 1 | 282 |
G16x64 | 16 | M16 | 64 | 32 | 32 | 16 | 16 | 26 | 1 | 115 | 96 | 24 | 1 | 411 |
*Tolerance of b2 slot: B13 is for G4x8-G10x20 for +0.15/0.7 is for G10x40 above.
*There are“FG” items in table which are the same dimensions,only with fine-pitch threads,such as G8x16FG,G8x32FG,G10x20FG,G10x40FG etc.
*Left threads are available and non-standard clevises as customer's drawings.
Alternative: stainless steel 304,316 or Aluminum
