| Model:: | CS16M10 | Ball socket:: | Low carbon steel |
|---|---|---|---|
| Package:: | Standard Package special Package Is Available |
Material:: | Carton Steel |
| Surface:: | Passivated in zinc white-blue,zinc/black, zinc/yellow | Alternative:: | Stainless steel 304 or 316 |
| Ball stud:: | Carbon steel 1045 | Safety clip/inner ring:: | Spring steel |

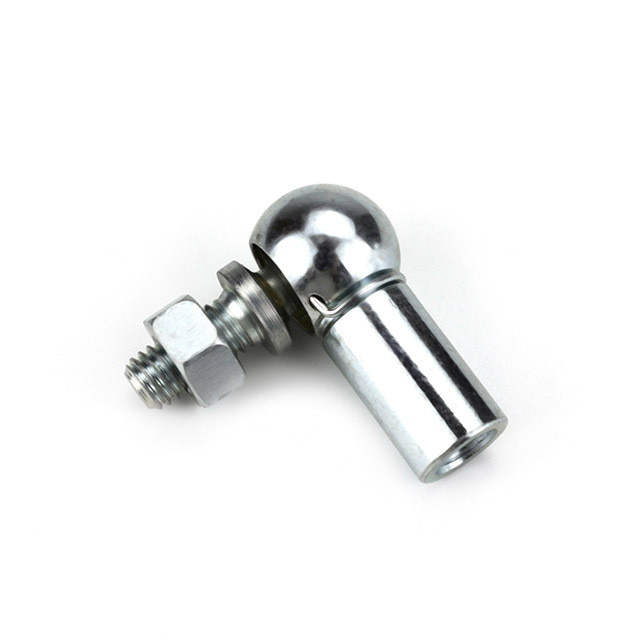

Angled ball joint DIN71802, Form CS | |||||||||
Item | d1 h9 | d2 | d3 | l2 ±0.3 | l3 ±0.3 | a ±0.3 | e min | WAF | Weight (kg/1000pc) |
CS8M5 | 8 | M5 | 8 | 10.2 | 9 | 22 | 10.2 | 7 | 15 |
CS10M6 | 10 | M6 | 10 | 12.5 | 11 | 25 | 11.5 | 8 | 25 |
CS13M8 | 13 | M8 | 13 | 16.5 | 13 | 30 | 14 | 11 | 53 |
CS16M10 | 16 | M10 | 16 | 20 | 16 | 35 | 15.5 | 13 | 104 |
CS16M12 | 16 | M12 | 16 | 20 | 16 | 35 | 15.5 | 13 | 104 |
CS19M14 | 19 | M14 | 22 | 28 | 20 | 45 | 21.5 | 16 | 221 |
CS19M14x1.5 | 19 | M14x1.5 | 22 | 28 | 20 | 45 | 21.5 | 16 | 221 |
CS19M16 | 19 | M16 | 22 | 28 | 20 | 45 | 21.5 | 16 /19 | 221 |
*WAF: with or without spanner surface on ball socket,made as customers' request.
Form CS: with spanner surface on ball stud; with safety clip on ball socket
Form C: with spanner surface on ball stud; WITHOUT safety clip on ball socket
*Please tell us if you need Angled ball joint DIN71802 Form A/AS,Form B/BS.
Note:
-Material:
Ball socket: low carbon steel
Ball stud: carbon steel 1045
safety clip/inner ring: spring steel
* Alternative: stainless steel 304 or 316
-Surface treatment: passivated in zinc white-blue,zinc/black, zinc/yellow
*Left thread or sealing cap are available.The sealing cap(neoprene) work on
-40~120℃ temperature(excellent performance).
* Non-standard ball joints made as customers' drawings or samples.
*If you need ball joints DIN71802,Form A,AS,B,BS,please feel free contact to us.
