| Model:: | B13M8 | Ball socket:: | Low carbon steel |
|---|---|---|---|
| Package:: | Bulk Package special Package |
Material:: | Carton Steel |
| Surface:: | Passivated in zinc white-blue,zinc/black, zinc/yellow | Alternative:: | Stainless steel 304 or 316 |
| Safety clip/inner ring:: | Spring steel |

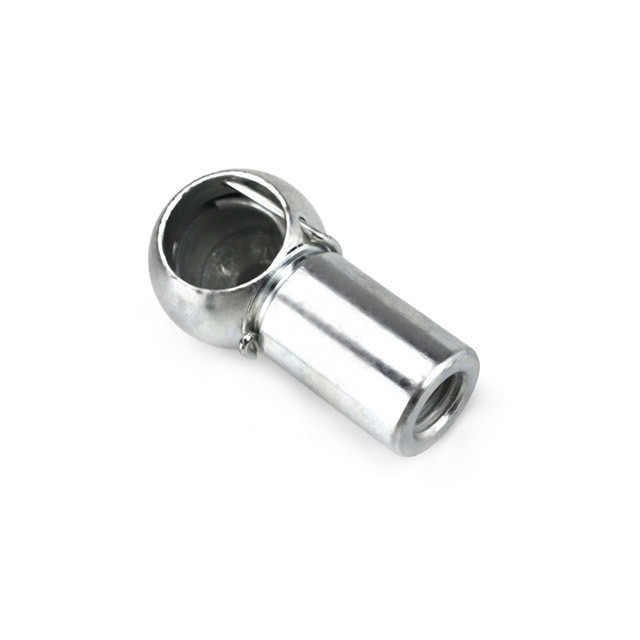

Ball sockets DIN71805, Form B | |||||||||
Item | d1 h9 | d2 | d3 | l2 ±0.3 | l3 ±0.3 | a ±0.3 | e min | WAF | Weight (kg/1000pc) |
B8M5 | 8 | M5 | 8 | 10.2 | 9 | 22 | 10.2 | 7 | 15 |
B10M6 | 10 | M6 | 10 | 12.5 | 11 | 25 | 11.5 | 8 | 25 |
B13M8 | 13 | M8 | 13 | 16.5 | 13 | 30 | 14 | 11 | 53 |
B16M10 | 16 | M10 | 16 | 20 | 16 | 35 | 15.5 | 13 | 104 |
B16M12 | 16 | M12 | 16 | 20 | 16 | 35 | 15.5 | 13 | 104 |
B19M14 | 19 | M14 | 22 | 28 | 20 | 45 | 21.5 | 16 | 221 |
B19M14x1.5 | 19 | M14x1.5 | 22 | 28 | 20 | 45 | 21.5 | 16 | 221 |
B19M16 | 19 | M16 | 22 | 28 | 20 | 45 | 21.5 | 16/17 | 221 |
*WAF: with or without spanner surface on ball socket,made as customer's request.
Form B: with safety clip on ball socket
Form A: WITHOUT safety clip on ball socket
Note:
-Material:
Ball socket: low carbon steel
safety clip/inner ring: spring steel
Alternative: stainless steel 304 or 316
-Surface treatment: passivated in zinc white-blue,zinc/black, zinc/yellow
*Left thread is available.
