| Model:: | C10M6 | Package:: | Bulk Package special Package |
|---|---|---|---|
| Material:: | AISI1045 carbon steel, Ball Hardness Min HRC52 | Surface:: | Passivated in zinc white-blue,zinc/black, zinc/yellow Or Oiled |
| Alternative:: | Stainless steel 304 or 316 |

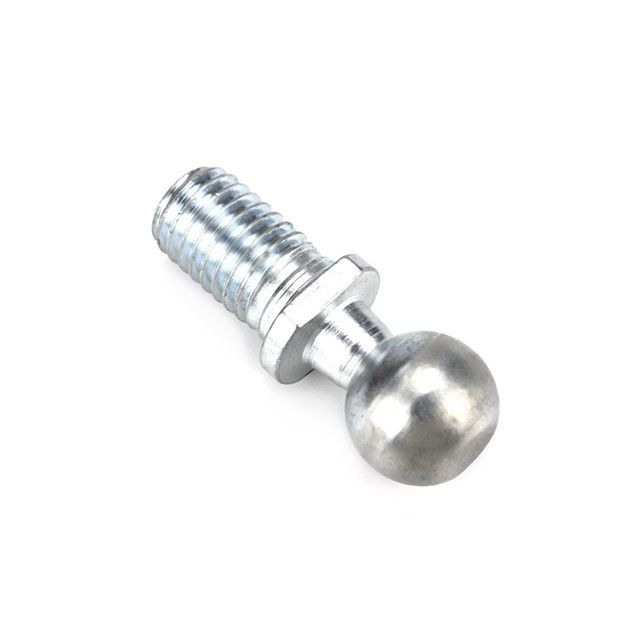

Ball studs DIN71803, Form C | |||||||||||||
Item | d1 h9 | d2 | l1 ±0.2 | c +0.4 | d3 h14 | d5 h11 | d6 -0.4 | l2 ±0.3 | l3 ±0.3 | l4 ±0.3 | l6 max | WAF | Weight (g/pc) |
C8M5 | 8 | M5 | 4 7.5 | 2 | 8 | 5 | 3 | 10.2 | 9 | 12.5 | 4 | 7 | 4.55 |
C10M6 | 10 | M6 | 4.5 8 | 2.2 | 10 | 6 | 4 | 12.5 | 11 | 15.5 | 4 | 8 | 8.5 |
C13M8 | 13 | M8 | 5 10 | 2.4 | 13 | 8 | 6 | 16.5 | 13 | 18.5 | 5.3 | 11 | 17.7 |
C16M10 C16M12 | 16 | M10 M12 | 6 13 | 2.7 | 16 | 10 | 8 | 20 | 16 | 23 | 7.3 | 13 | 35.1 |
C19M14x1.5 C19M14 | 19 | M14x1.5 M14 | 12 18 | 3 | 19 | 14 | 10 | 28 | 20 | 28.5 | 10.8 | 16 | 71.2 |
*WAF: is only for Form C
Material: carbon steel
Surface: zinc/plated, oiled
Alternative: stainless steel 304,316 etc
*Special ball studs made as drawings.
Note:
Form A: with thread stud, without spanner surface
Form B: with rivet stud, without spanner surface
Form C: with thread stud, with spanner surface
