| Material:: | Carbon steel | Surface:: | Passivated in zinc white-blue,zinc/yellow,zinc/black |
|---|---|---|---|
| Alternative:: | Stainless steel 304 or 316 |

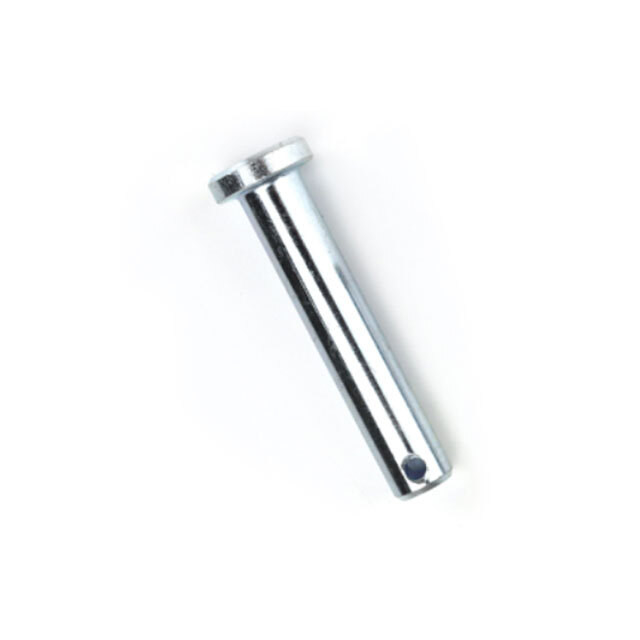

DIN1444 Clevis pin with head
Size | d h11 | dk h14 | d1 H13 | c max | e | k js14 | le min | r |
5 | 5 | 8 | 1.2 | 2 | 1 | 1.6 | 2.9 | 0.6 |
6 | 6 | 10 | 1.6 | 2 | 1 | 2 | 3.2 | 0.6 |
8 | 8 | 14 | 2 | 2 | 1 | 3 | 3.5 | 0.6 |
10 | 10 | 18 | 3.2 | 2 | 1 | 4 | 4.5 | 0.6 |
12 | 12 | 20 | 3.2 | 3 | 1.6 | 4 | 5.5 | 0.6 |
14 | 14 | 22 | 4 | 3 | 1.6 | 4 | 6 | 0.6 |
16 | 16 | 25 | 4 | 3 | 1.6 | 4.5 | 6 | 0.6 |
18 | 18 | 28 | 5 | 3 | 1.6 | 5 | 7 | 1 |
20 | 20 | 30 | 5 | 4 | 2 | 5 | 8 | 1 |
22 | 22 | 33 | 5 | 4 | 2 | 5.5 | 8 | 1 |
24 | 24 | 36 | 6.3 | 4 | 2 | 6 | 9 | 1 |
*Table according to ISO EN 22341.Non-standard/similar clevis pin made as customers' request.
Material: steel
Surface: zinc/plated
Type A: without pin hole
Type B: with pin hole
