| Model:: | AJ13M8 | Ball socket:: | Low Carbon Steel |
|---|---|---|---|
| Package:: | Bulk Package special Package |
Material:: | Carton Steel |
| Surface:: | Zinc White-blue | Alternative:: | Stainless Steel 304,316 |
| Ball stud:: | AISI1045 | Safety clip/inner ring:: | Spring Steel |

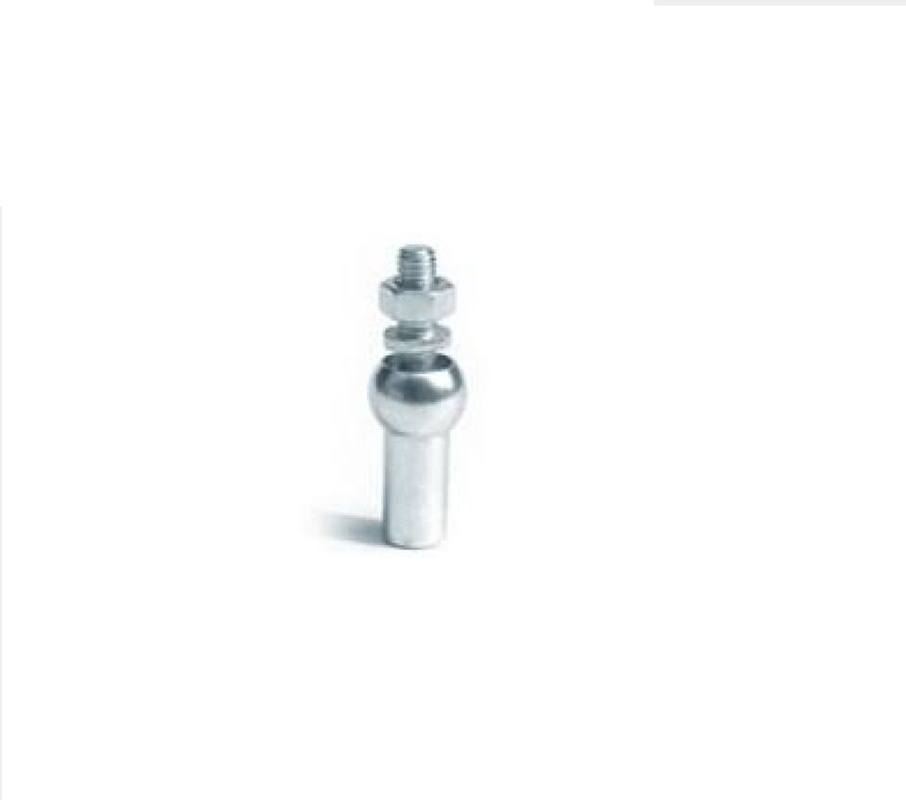

Axial joint similar to DIN71802 | |||||||||
Item | d1 h9 | d2 | a | la | l3 | e min | WAF | Extraction force F(N) | Weight (kg/1000pc) |
AJ8 | 8 | M5 | 22 | 19.2 | 9 | 10.2 | 7 | 30 | 15.2 |
AJ10 | 10 | M6 | 25 | 23.5 | 11 | 11.5 | 8 | 40 | 25.2 |
AJ13 | 13 | M8 | 30 | 29.5 | 13 | 14 | 11 | 60 | 53.1 |
AJ16 | 16 | M10 | 35 | 36 | 16 | 15.5 | 13 | 80 | 103.8 |
AJ19 | 19 | M14 | 45 | 48 | 20 | 21.5 | 17 | 100 | 220.9 |
AJ19-2 | 19 | M14x1.5 | 45 | 48 | 20 | 21.5 | 17 | 100 | 220.9 |
Note:
Material: carbon steel
Surface: passivated in zinc white-blue,zinc/yellow,zinc/black
Alternative: stainless steel 304 or 316
*With or without spanner surface on ball socket as customer’s choice.
*Left thread and sealing cap are available.
