| Place of Origin: | China |
| Brand Name: | Wuerd |
| Certification: | ISO9001 |
| Model Number: | CS8M5-CS19M16,G4x8,G5x10,... |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | 0.3USD/pc |
| Packaging Details: | levius |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Western Union, L/C, Western Union |
| Supply Ability: | 300,000pcs/month |
| Dimensions(mm) | Weight (kg/1000pcs) for Form |
|||||||||
| d1 h9 |
d2 |
l2 ±0.3 |
l3 ±0.3 |
e min |
d5 h11 |
l1 ±0.2 |
a ±0.3 |
WAF h14 |
A and AS C and CS |
B and BS |
| 8 | M5x0.8 | 10.2 | 9 | 10.2 | 5 | 4 7.5 |
22 | 7 | 15.2 | 12.85 13.35 |
| 10 | M6x1 | 12.5 | 11 | 11.5 | 6 | 4.5 8 |
25 | 8 | 25.2 | 21.3 22 |
| 13 | M8x1.25 | 16.5 | 13 | 14 | 8 | 5 10 |
30 | 11 | 53.1 | 43.1 45 |
| 16 | M10x1.5 M12x1.75 |
20 | 16 | 15.5 | 10 | 6 13 |
35 | 13 | 103.8 | 82.3 86.6 |
| 19 | M14x1.5 M14x2 M16x2 |
28 | 20 | 21.5 | 14 | 12 18 |
45 | 16 | 220.9 | 181 188.7 |

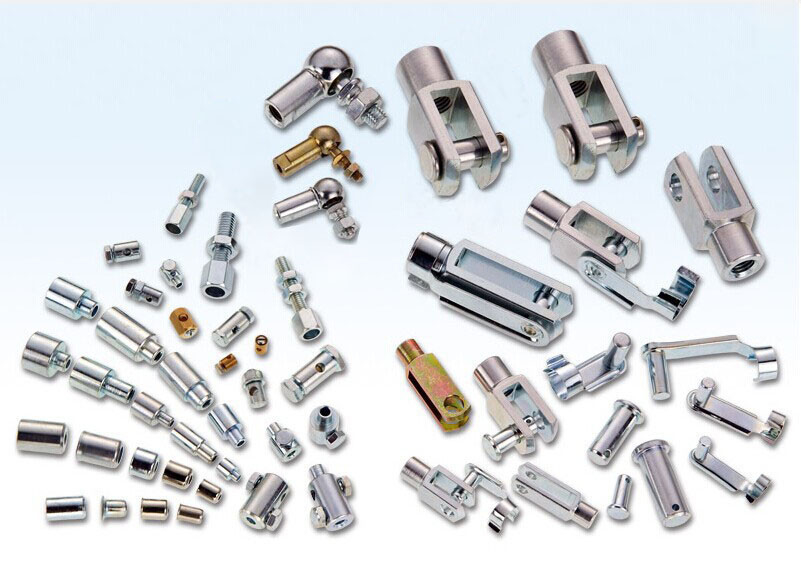

*Standard: Angle ball joint DIN71802
*Angle ball joint DIN 71802 consist of a ball socket DIN 71805 and a ball stud DIN 71803.
The angle of rotation for the Form with outer safety clip(Form CS, BS) is 15°, without outer safety clip(Form C, B) is 18°.
*Material: carbon steel Alternative: stainless steel 304 or 316
*Surface: zinc plated,zinc/clear,zinc/black,zinc/yellow or white-blue passivated
*Special Angle joints can be made as customer´s drawing or samples.
Note:
*A/B/C type without outer safety clip on the ball socket
*AS/BS/CS type with outer safety clip on the ball socket
*There is spanner surface on ball stud of Form C,CS
*Ball socket with or without spanner surface upon request.
*Left thread,with or without sealing cap upon request.
* Special package are available
Clevis/yoke DIN71752,Clevis joint DIN71751 :
*Material: steel
*Surface: zinc white-blue
*Alternative: stainless steel 304,316,Aluminium
* Special clevis yoke made as drawings
*Inch threads are available
* Package: bulk and special package as customer's request.
