    Detailed Product Description

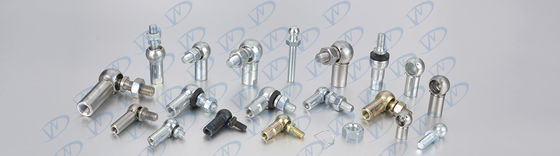

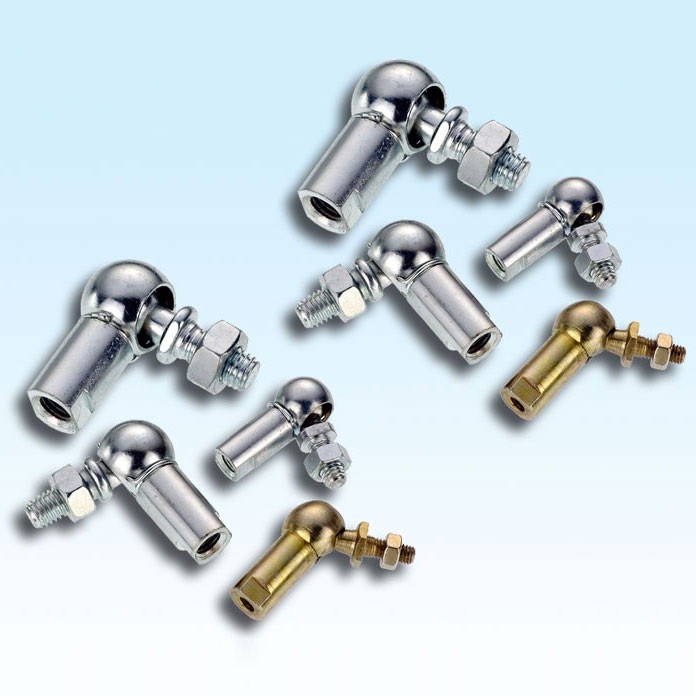

    DIN71802 Angle ball joint CS13M8,steel with zinc white-blue,can be used for different industries,such as gas spring etc

    Dimensions(mm) Weight
    (kg/1000pcs) for Form
    d1
    h9

    d2

    l2
    ±0.3
    l3
    ±0.3
    e
    min
    d5
    h11
    l1
    ±0.2
    a
    ±0.3
    WAF
    h14
    A and AS
    C and CS
    B and BS
    8 M5x0.8 10.2 9 10.2 5 4
    7.5
    22 7 15.2 12.85
    13.35
    10 M6x1 12.5 11 11.5 6 4.5
    8
    25 8 25.2 21.3
    22
    13 M8x1.25 16.5 13 14 8 5
    10
    30 11 53.1 43.1
    45
    16 M10x1.5
    M12x1.75
    20 16 15.5 10 6
    13
    35 13 103.8 82.3
    86.6
    19 M14x1.5
    M14x2
    M16x2
    28 20 21.5 14 12
    18
    45 16 220.9 181
    188.7

    *Standard: Angle ball joint DIN71802

    *Angle ball joint DIN 71802 consist of a ball socket DIN 71805 and a ball stud DIN 71803.

    The angle of rotation for the Form with outer safety clip(Form CS, BS) is 15°, without outer safety clip(Form C, B) is 18°.

    *Material: carbon steel                     Alternative: stainless steel 304 or 316

    *Surface: zinc plated,zinc/clear,zinc/black,zinc/yellow or white-blue passivated

    *Special Angle joints can be made as customer´s drawing or samples.


    Note:

    *A/B/C type without outer safety clip on the ball socket
    *AS/BS/CS type with outer safety clip on the ball socket
    *There is spanner surface on ball stud of Form C,CS
    *Ball socket with or without spanner surface upon request.
    *Left thread,with or without sealing cap upon request.
