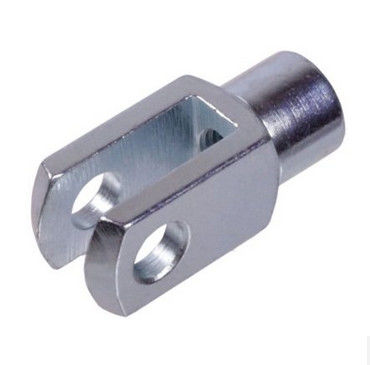

yoke DIN71752 ISO8140

Product Details:

Place of Origin:	China
Brand Name:	Wuerd
Certification:	ISO9001
Model Number:	G16x32,G20x40,G25x50

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	0.3 $/pc
Packaging Details:	cartons,pallets
Delivery Time:	3 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	30,000pcs/month

Contact Now

Detailed Product Description

-Standard: yoke as DIN71752/ISO8140 or customer's drawing

-Material: Low carbon steel

Alternative: stainless steel 304,316 or Aluminium

-Surface protection: electroplated galvanized; Passivated in white-blue(sliver/clear),zinc/yellow or zinc/black
Optional: Phosphatized and oiled

-Left thread is avaiable for yokes as customer's requieremnt

Item	d1 H9	g ±0.5	a h 11 +0.30 -0.16	b1 B 13	b2	d2	d3 ±0.3	f ±0.2	l1 ±0.5	l2		l3	r3 ±0.2	Weight kg ≈
G 4x8	4	8	8	4	B 13	M 4x0.7	8	0.5	21	16	±0.3	6	0.5	0.005
G 4x16	4	16	8	4		M 4x0.7	8	0.5	29	24		6	0.5	0.007
G 5x10	5	10	10	5		M 5x0.8	9	0.5	26	20		7.5	0.5	0.009
G 5x20	5	20	10	5		M 5x0.8	9	0.5	36	30		7.5	0.5	0.0013
G 6x12	6	12	12	6		M 6x1	10	0.5	31	24		9	0.5	0.0015
G 6x24	6	24	12	6		M 6x1	10	0.5	43	36	±0.4	9	0.5	0.021
G 8x16	8	16	16	8		M 8x1.25	14	0.5	42	32		12	0.5	0.037
G 8x16FG	8	16	16	8		M 8x1	14	0.5	42	32		12	0.5	0.037
G 8x32	8	32	16	8		M 8x1.25	14	0.5	58	48		12	0.5	0.054
G 8x32FG	8	32	16	8		M 8x1	14	0.5	58	48		12	0.5	0.054
G 10x20	10	20	20	10		M 10x1.5	18	0.5	52	40		15	0.5	0.074
G 10x20FG	10	20	20	10		M 10x1.25	18	0.5	52	40		15	0.5	0.074
G 10x40	10	40	20	10	+0.7 +0.15	M 10x1.5	18	0.5	72	60		15	0.5	0.116
G 10x40FG	10	40	20	10		M 10x1.25	18	0.5	72	60		15	0.5	0.116
G 12x24	12	24	24	12		M 12x1.75	20	0.5	62	48		18	0.5	0.121
G 12x24FG	12	24	24	12		M 12x1.25	20	0.5	62	48		18	0.5	0.121
G 12x48	12	48	24	12		M 12x1.75	20	0.5	86	72		18	0.5	0.175
G 12x48FG	12	48	24	12		M 12x1.25	20	0.5	85	72		18	0.5	0.175
G 14x28	14	28	27	14		M 14x2	24	1	72	56		22.5	1	0.178
G 14x28FG	14	28	27	14		M 14x1.5	24	1	72	56		22.5	1	0.178
G 14x56	14	56	27	14		M 14x2	24	1	101	85		22.5	1	0.258
G 14x56FG	14	56	27	14		M 14x1.5	24	1	101	85		22.5	1	0.258
G 16x32	16	32	32	16		M 16x2	26	1	83	64		24	1	0.282
G 16x32FG	16	32	32	16		M 16x1.5	26	1	83	64		24	1	0.282
G 16x64	16	64	32	16		M 16x2	26	1	115	96		24	1	0.411
G 16x64FG	16	64	32	16		M 16x1.5	26	1	115	96		24	1	0.411
G 18x36	18	36	36	18		M 18x2.5	30	1	94	72		27	1.5	0.39
G 18x36FG	18	36	36	18		M 18x1.5	30	1	94	72		27	1.5	0.39
G 20x40	20	40	40	20		M 20x2.5	34	1	105	80		30	1.5	0.55
G 20x40FG	20	40	40	20		M 20x1.5	34	1	105	80		30	1.5	0.55
G 20x80	20	80	40	20		M 20x2.5	34	1	145	120		30	1.5	0.8
G 20x80FG	20	80	40	20		M 20x1.5	34	1	145	120		30	1.5	0.8
G 25x50	25	50	50	25		M 24x3	42	1.5	132	100		36	1.5	1.1
G 25x50FG	25	50	50	25		M 24x2	42	1.5	132	100		36	1.5	1.1
G 28x56	28	56	55	28		M 27x3	48	1.5	148	112		40	2	1.5
G 28x56FG	28	56	55	28		M 27x2	48	1.5	148	112		40	2	1.5
G 30x54FG	30	56	55	30		M 27x2	48	1.5	148	112		40	2	1.44
G 30x60	30	60	60	30		M 30x3.5	52	1.5	160	120		42	2	1.97
G 30x60FG	30	60	60	30		M 30x2	52	1.5	160	120		42	2	1.97
G 35x54FG	35	54	70	35		M 36x2	60	2	188	144		54	3	2.93
G 35x72	35	72	70	35		M 36x4	60	2	188	144		54	3	2.93
G 35x72FG	35	72	70	35		M 36x2	60	2	188	144		54	3	2.93
G 36x72	35	72	70	35		M 36x4	60	2	188	144		54	3	2.93
G 36x72FG	35	72	70	35		M 36x2	60	2	188	144		54	3	2.93
G 40x84FG	40	84	85	40		M 42x2	70	3	232	168		63.5	5	5.64
G 42x84	42	84	85	42		M 42x4.5	70	3	232	168		63.5	5	5.34
G 42x84FG	42	84	85	42		M 42x2	70	3	232	168		63.5	5	5.34
G 50x96	50	96	96	50		M 48x5	83	3	265	192		73	5	7.86
G 50x96FG	50	96	96	50		M 48x2	83	3	265	193		73	5	7.86
